Attention:The cutting marks were more thin and light, the tile edge would be more correct and fine. On the contrary, thick and dark cutting marks would be with bevel and ugly edge. So the pulling force should be light, in addition, the tile’s corner would be break if the cutting marks was interrupted.

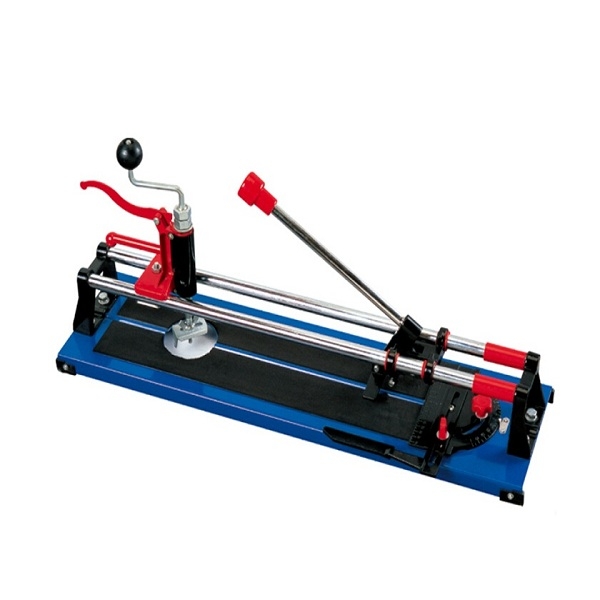

How to use the Manual ceramic tile cutter safely?

1, Open the free foot, lock the nut.

2, Adjust the cutting size on the rule rod, lock the fixed screw rod by hand after confirme.

3, Put the tile on the platform.

4, when starting to cut, first pull the pull-push rod to the end, then put the blades on tile lightly, push the blade to front slot along the main shaft, next put the foot on tile, flap the end of pull-push handle lightly, so the tile would break along the cutting marks.
